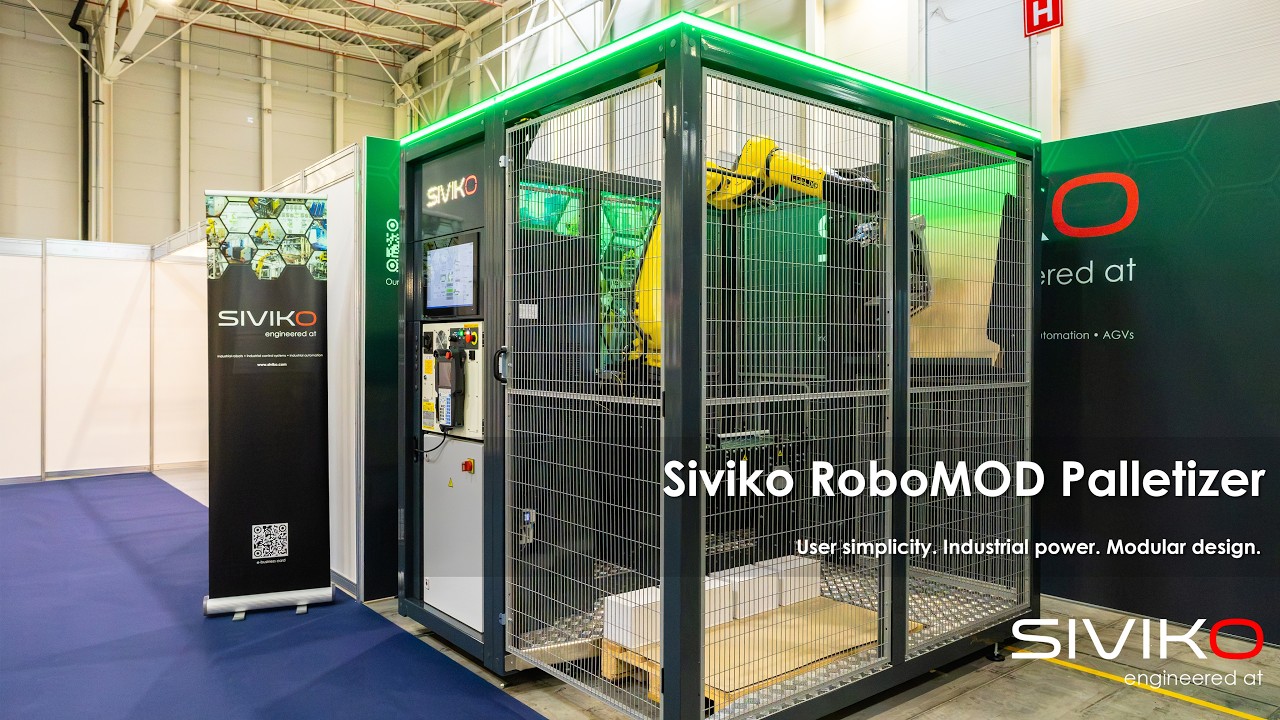

Siviko RoboMOD Palletizer
User simplicity. Industrial power. Modular design.
Siviko RoboMOD Palletizer – a modular, industrial, and versatile robot palletizing cell that offers the best performance. It is reliable, easy to maintain and operate, while delivering maximum value to our customers.
The modular design and the software of the Siviko RoboMOD Palletizer allow you to do your own commissioning. The modules are put together in no time via electrical and mechanical connectors. When the assembly is done, follow the short initiation process, and you are ready to palletize.
Make your own palletizing layouts with the Siviko Easy Pallet software
An easy-to-use robotic palletizing cell requires quick, simple, and safe program changes without demanding programming skills. Users simply input information in the Siviko Easy Pallet software, such as:
- Product size, weight, and orientation;
- Pallet size;
- Layout configuration for even and odd rows;
- Number of objects per row;
- Number of rows;
Based on Ignition by Inductive Automation. Easy to extract data – OEE, SCADA, MES, and ERP.
Includes a 21” HMI industrial panel with an industrial computer. Based on the high-performance HMI philosophy.
Powered by Ignition
Open, Scalable, Future-Proof
The Siviko RoboMOD Palletizer is not a closed, proprietary black-box system. Its software is built on Ignition by Inductive Automation, one of the most widely used industrial software platforms in modern manufacturing.
Choosing the RoboMOD Palletizer means you get:
✔ A palletizer ready for digital manufacturing
✔ Easy integration with existing systems
✔ Reduced integration costs
✔ Full data ownership
✔ Future-proof architecture
✔ Ignition is built on a solid, unified architecture and proven, industrial-grade security technology
✔ Ignition comes with the ability to safeguard your data with secure TLS 1.3 technologies
Siviko RoboMOD Palletizer cell types
RoboMOD Palletizer S
- Uses a FANUC M10 series industrial robot.
- Payload max: 9 kg (works only with a vacuum gripper).
- Cycle time max: 13 pcs/min (single pick with vacuum gripper).
- Works only with vacuum grippers.
- Cell size approx: 2300 x 2600 x 2300 mm (L x W x H).
- Price starting from:
65 000 EUR/ 59 000 EUR (limited-time promotion!)- Including the base module with a FANUC robot, a single infeed conveyor, a vacuum gripper, safety fences, 1 pallet place, slip sheet pick-and-place functionality, Siviko Easy Pallet, and an HMI. No transport or commissioning is included.
RoboMOD Palletizer M
- Uses a FANUC M20 series industrial robot.
- Payload max: 17 – 20 kg (pneumatic box or bag gripper – vacuum gripper).
- Cycle time max: 9 – 13 pcs/min (single pick with pneumatic box or bag lite gripper – vacuum gripper).
- Works with all types of grippers.
- Possible to do a multipick with a double or triple vacuum gripper, which increases palletizing capacity significantly.
- Cell size approx: 2500 x 2800 x 2300 mm (L x W x H)
- Price starting from:
72 000 EUR/ 67 000 EUR (limited-time promotion!)- Including the base module with a FANUC robot, a single infeed conveyor, a vacuum gripper, safety fences, 1 pallet place, slip sheet pick-and-place functionality, Siviko Easy Pallet, and an HMI. No transport or commissioning is included.
RoboMOD Palletizer L
- Uses a FANUC M710 series industrial robot.
- Payload max: 40 kg (vacuum gripper, pneumatic box or bag gripper)
- Cycle time max: 9 – 13 pcs/min (single pick with pneumatic box gripper – vacuum gripper or bag gripper)
- Works with all types of grippers.
- Possible to do a multipick with a double or triple vacuum gripper, which increases palletizing capacity significantly.
- Cell size approx: 3200 x 3500 x 2300 mm (L x W x H)
- Price starting from:
92 000 EUR/ 89 000 EUR (limited-time promotion!)- Including the base module with a FANUC robot, a single infeed conveyor, a vacuum gripper, safety fences, 1 pallet place, slip sheet pick-and-place functionality, Siviko Easy Pallet, and an HMI. No transport or commissioning is included.
RoboMOD Palletizer XL
- Uses a FANUC R2000 or FANUC M-410 series industrial robot.
- Payload max: 150 kg (vacuum gripper, pneumatic box or bag gripper)
- Cycle time max: 9 – 13 pcs/min (single pick with pneumatic box gripper – vacuum gripper or bag gripper)
- Works with all types of grippers.
- Possible to do a multipick with a double or triple vacuum gripper, which increases palletizing capacity significantly.
- Cell size approx: 3500 x 3500 x 2300 mm (L x W x H)
- Price starting from: 104 500 EUR
- Including the base module with a FANUC robot, a single infeed conveyor, a vacuum gripper, safety fences, 1 pallet place, slip sheet pick-and-place functionality, Siviko Easy Pallet, and an HMI. No transport or commissioning is included.
Modules and options for Siviko RoboMOD Palletizer
Second pallet place
The second pallet place module extends the autonomy time of your RoboMOD Palletizer. Once the first pallet position is full, the robot continues palletizing on the second one.
Since there are no safety light barriers inside the cell, once a worker opens a door, the entire palletizing cell stops operating.
This option improves downtime for not changing the pallet on time.
Internal light barriers
This option is possible only with a second pallet place. It adds two internal light barriers between the robot and the pallet places. Normally, when a door is open, the robot stops working. With this option, the robot can continue working in the position with the door closed while a pallet is changed at the other location. This option reduces downtime during pallet changes.
Exit light barrier
This option replaces the door with a light barrier to make pallet changes easier. The option makes sense when the full pallet cycle is very fast.
Two infeed conveyors – back
Adds a second infeed conveyor in the back of the cell. This allows the RoboMOD palletizer to serve two production lines simultaneously.
With the second pallet position, the cell can palletize two products at the same time (when compatible with the same gripper).
Two infeed conveyors – sides
Adds a second infeed conveyor on the sides. This allows the RoboMOD palletizer to serve two production lines simultaneously.
With the second pallet position, the cell can palletize two products at the same time (when compatible with the same gripper).
Automatic pallet retrieval single
This option adds automated retrieval of a pallet with two positions. One is active, and the other is a buffer from which the pallet has to be picked up. There is a light barrier on the conveyor exit. Automatically transfers full pallets to an external conveyor or stretch wrapper. Works best with an automated empty pallet pick and place.
Automatic pallet retrieval double
This option adds automated double retrieval of a pallet with two positions. One is active, and the other is a buffer from which the pallet has to be picked up. There is a light barrier on the conveyor exit. Automatically transfers full pallets to an external conveyor or stretch wrapper. Works best with an automated empty pallet pick and place.
Empty pallet pick and place
This option is only possible with the Siviko RoboMOD L and XL palletizer. A buffer for 13 empty pallets is added as a module. The gripper has added forks and a sensor that allow the robot to pick up and place the empty pallet at the palletizing place. It works best with an automated pallet retrieval module.
Types of Siviko grippers
Vacuum gripper
- Vacuum grippers can handle a lot of products.
- The limitation comes if the top of the product is open or too flexible.
- Size and payload can be customized.
Siviko PBXG box gripper
- Palletizing of boxes, trays, display boxes, and other products.
- It lifts the product from below, which is safer than a vacuum gripper.
- Payload max 17 kg, customizable
- Mechanical gripper with pneumatic actuators.
- Maximum bag dimension 570 x 220 x 320 mm (L × W × H), customizable
- Minimum bag dimension 280 x 150 x 200 mm (L × W × H), customizable
Siviko PBG bag gripper
- Palletizing of bags, sacks, and pauches
- Pneumatic top press for better grip
- Payload max 50 kg, customizable
- Mechanical gripper with pneumatic actuators
- Maximum bag dimension 800 х 550 х 150 mm (L × W × H), customizable
- Minimum bag dimension 350 х 250 х 80 mm (L × W × H), customizable
Custom Siviko grippers
- We can design a custom gripper for products that cannot be picked up with the other gripper types.
Main features of Siviko RoboMOD Palletizer
Modular Design
- Built on modules that can be customized.
- Easy transportation due to compact size.
- Easy assembly.
- Fast and easy commissioning.
Industrial Robots
- Use of FANUC industrial robots
- Great speeds, reach, and payloads.
- Industrial robots are built to last.
- Cheaper than cobots for the same parameters.
Versatile Grippers
- Various pneumatic and vacuum grippers.
- Palletize almost anything – boxes, bags, trays, buckets, etc.
- Pick many different SKUs with the same gripper.
- Slip sheet and pallet pick-up options.
Safety
- Passive guarding for the highest level of safety.
- The most compact size possible.
- Maintenance-free in comparison with safety sensors.
- Optional light barriers to increase productivity.
Ease of use
- Make palletizing layouts with the Siviko Easy Pallet software.
- Based on Ignition Edge by Inductive Automation.
- Easy to extract data – OEE, SCADA, MES, and ERP.
- High-performance HMI interface.
Maintenance
- Remote maintenance for the first 12 months by Siviko.
- Local on-site maintenance of the robot by FANUC.
- Easy to repair and retrofit as the cells use standard parts.
- Fast delivery of spare parts if necessary.
Benefits of using the Siviko RoboMOD Palletizer
Investing in the Siviko RoboMOD Palletizer has many advantages from an operations management view:
Increase palletizing speed
- Remove production bottlenecks;
- Handle parts 24/7, at up to 13 cycles per minute or more;
- Utilize a payload of up to 150 kg. Possible up to 1000 kg with other FANUC robot models.
Reduce costs
- ROI of less than 3 years;
- Utilize workers for higher value-added tasks;
- Save floor space.
- Short lead time of delivery
Improve quality
- Improve palletizing repeatability;
- Increase process dependability;
- Seamless integration in the workflow.
Increase flexibility
- Use a single end-of-arm tool to handle several processes and objects.
- No programming skills needed. Create your own pallet layouts.
- OEE and production data are easily available. True Industry 4.0.
